Case Study: Delivering a 48-Cavity High-Speed Preform Mould for a Regional Beverage Giant
How Taoyuan Mould engineered a high-precision, 48-cavity PET preform moulding solution to eliminate production bottlenecks, reduce cycle time by 22%, and ensure zero-defect output for a major beverage brand.
Executive Summary

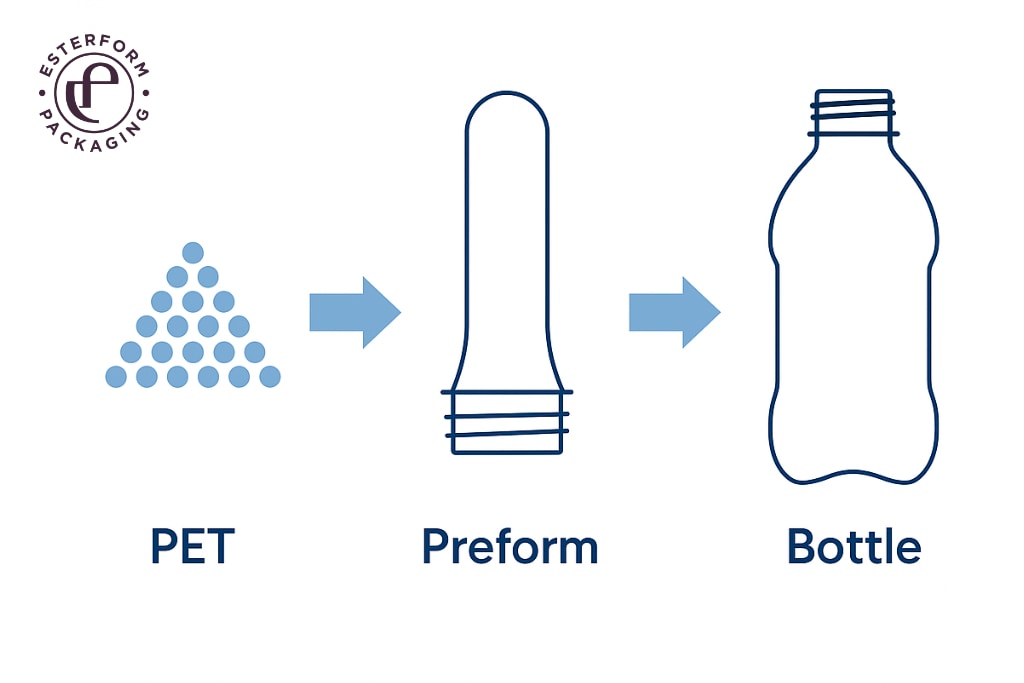

In the high-stakes beverage packaging market, operational throughput and material optimization dictate profitability. A prominent regional beverage producer operating across Southeast Asia approached Taoyuan Mould to resolve severe capacity constraints caused by aging injection tooling. By leveraging our engineering expertise in multi-cavity PET preform moulds, Taoyuan Mould engineered a turnkey 48-cavity needle valve gate preform mould system. The upgraded solution boosted daily preform yield by over 30%, lowered cycle time to 10.5 seconds for a standard 28mm PCO 1881 preform, and provided seamless integration with their existing high-speed injection moulding machinery.
The Client Challenge: Production Bottlenecks & High Scrap Rates
The client—a leading regional producer of carbonated soft drinks (CSD) and purified bottled water—was facing exponential market demand. However, their legacy 32-cavity tooling presented major technical limitations:
- Inconsistent Wall Thickness: Core deflection led to non-uniform material distribution, causing high rejection rates during the stretch blow moulding stage.
- Excessive Cycle Times: Inefficient cooling channel layouts resulted in long cooling phases (13.8 seconds total cycle time), limiting daily output.
- Thermal Degradation (AA Levels): Unbalanced hot runner manifolds elevated Acetaldehyde (AA) levels, compromising beverage taste purity.
- High Maintenance Downtime: Wear and tear on neck rings and gating components caused frequent flash and required routine line stoppages.
The Taoyuan Mould Solution: Precision Engineering Meets High-Speed Performance
As a recognized specialized PET preform mould solution provider, Taoyuan Mould deployed a comprehensive, end-to-end engineering strategy tailored to the client's high-output requirements.
1. Advanced Tooling & Metallurgy Selection
To resist long-term mechanical wear and chemical corrosion from high-IV PET resin, Taoyuan Mould selected premium-grade Swiss S136 stainless steel (hardened to HRC 48-52) for all core, cavity, and neck ring inserts. The mould base utilizes P20 pre-hardened steel with anti-corrosion nickel plating, ensuring structural integrity across millions of continuous shots.
2. Optimized Balanced Hot Runner & Needle Valve Gate System

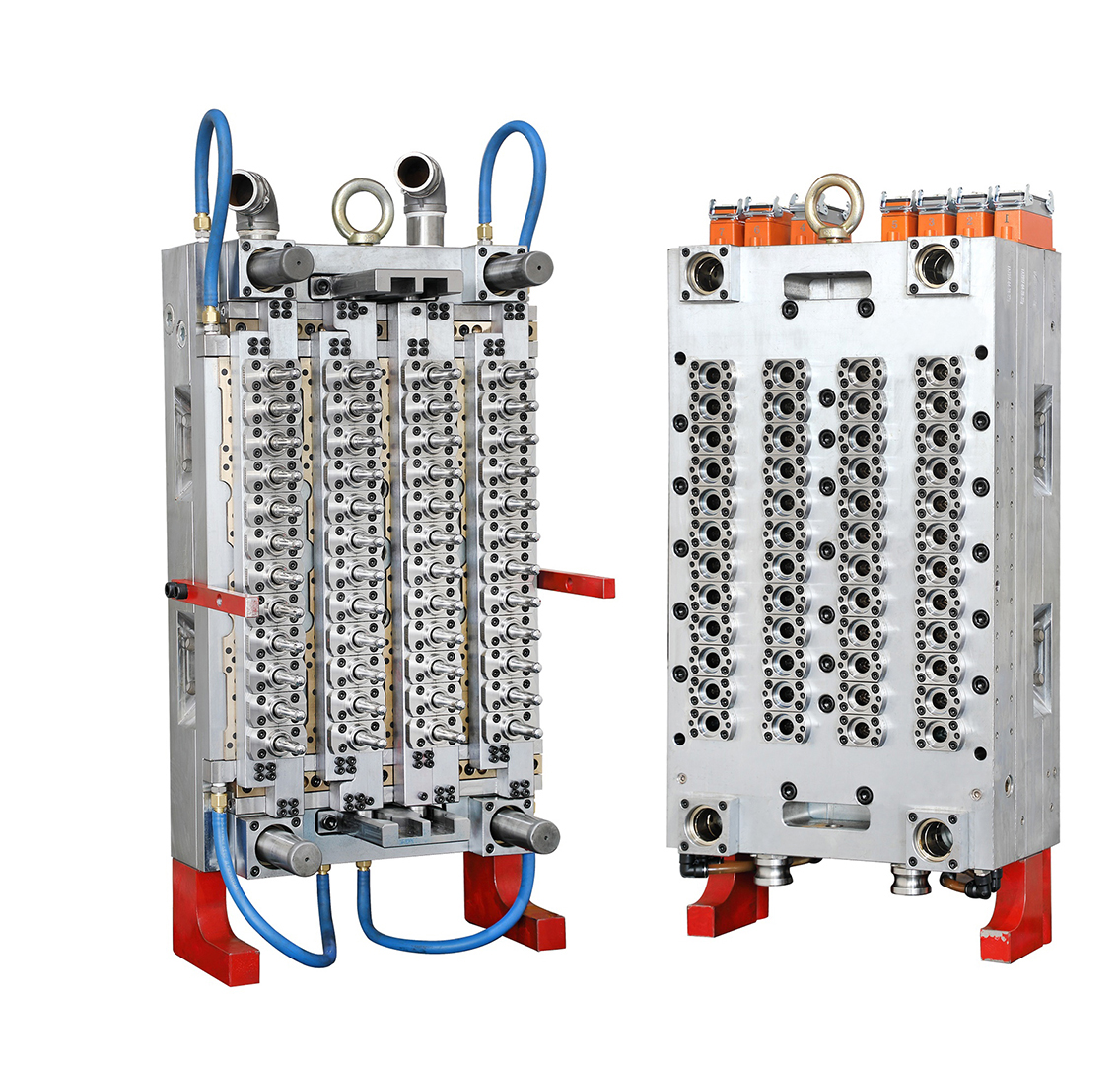

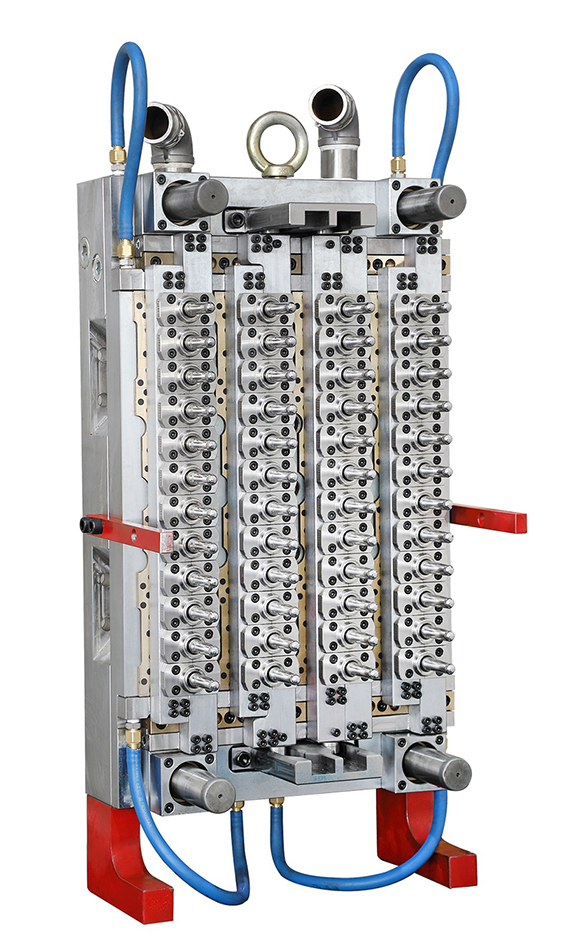

To eliminate thermal degradation and maintain consistent shot weight across all 48 cavities, our engineering team developed a custom-balanced hot runner manifold featuring:
- Individual Cavity Temperature Control: Ensures identical melt viscosity and prevents localized burning.
- Pneumatic Valve Gate Actuation: Provides clean, vestige-free gate shut-off, eliminating stringing and minimizing post-processing requirements.
- Low Acetaldehyde (AA) Thermal Profile: Streamlined melt channels reduce shear stress, preserving beverage flavor integrity.
3. Conformal Cooling Circuit & Heat Dissipation Design
Recognizing that cooling accounts for over 60% of the injection moulding cycle, Taoyuan Mould integrated high-efficiency, multi-zone conformal cooling channels around the cavity inserts and core pins. Combined with Beryllium-Copper (BeCu) thermal inserts at the preform neck finish, heat transfer rates were accelerated dramatically.
4. Interchangeable Cavity Module Architecture
To safeguard client uptime, each cavity module—including the neck ring, core, and cavity—was manufactured on ultra-precision 5-axis CNC machines with tolerances held to ±0.005mm. This allows quick, standalone replacement of individual components directly on the machine without dismounting the entire tool.
Results & Measurable ROI
Following rigorous internal testing (FAT) at Taoyuan Mould’s facility and seamless commissioning on site, the 48-cavity preform mould delivered exceptional performance metrics:
| Performance Metric | Legacy 32-Cavity Tool | Taoyuan 48-Cavity Tool | Improvement |
|---|---|---|---|
| Cycle Time (28mm, 14.5g) | 13.8 seconds | 10.5 seconds | 23.9% Reduction |
| Daily Output | ~200,000 pcs/day | ~395,000 pcs/day | 97.5% Increase |
| Preform Weight Variation | ±0.35g | ±0.08g (Cpk > 1.67) | 77% Greater Consistency |
| Scrap / Defect Rate | 2.4% | < 0.2% | 91.6% Waste Reduction |
Why Beverage Giants Trust Taoyuan Mould
At Taoyuan Mould, we don't just manufacture moulds—we deliver complete PET packaging engineering solutions. From lightweight bottle design and Mold Flow Analysis (MFA) to high-cavitation injection tooling and turnkey integration, our focus is driving down the total cost of ownership (TCO) for global beverage packaging operations.
"The 48-cavity preform mould from Taoyuan Mould transformed our filling line efficiency. The gate quality is flawless, weight consistency is unmatched, and the cycle time speed beat our project expectations."
— VP of Operations, Regional Beverage Client
