Technical Deep-Dive: Engineering Innovations Behind Our 32-Cavity High-Precision Edible Oil PET Preform Mould
Executive Summary & Project Overview
As a global leader and dedicated PET Preform Mould Solution Specialist, Taoyuan Mould has officially completed and delivered a state-of-the-art 32-cavity edible oil PET preform mould designed for high-capacity, heavy-weight packaging applications.

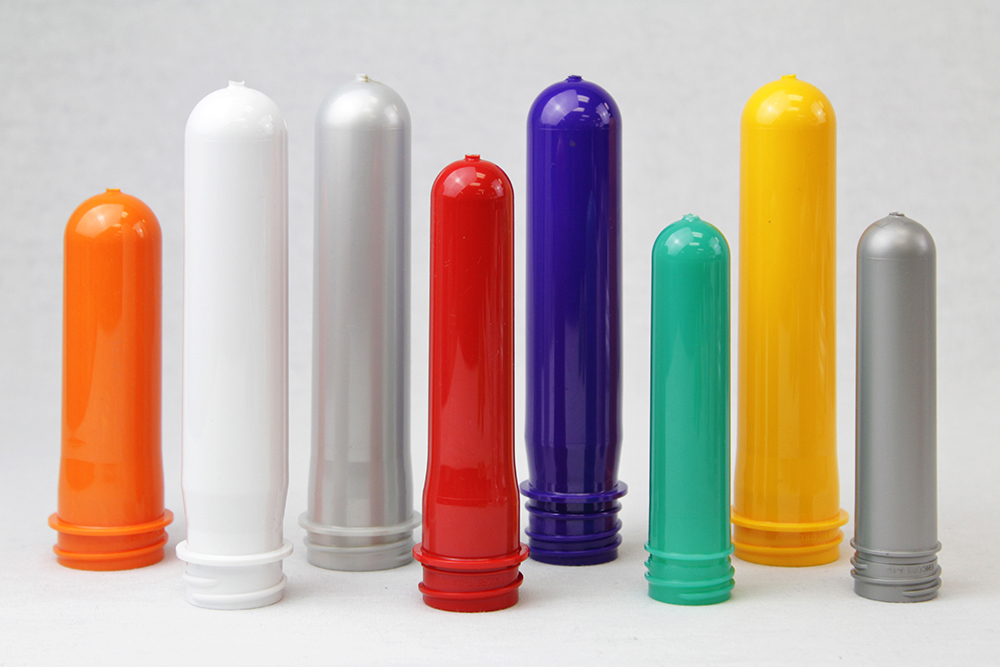

Edible oil preforms present unique manufacturing challenges compared to standard water or CSD preforms. Characterized by large neck finishes (e.g., 38mm, 45mm, 48mm), heavy wall thickness (3.5mm–5.5mm), and substantial shot weights, producing them requires exceptional thermal management, precise melt flow balance, and zero-leakage neck tolerances. This article details how Taoyuan Mould overcame these technical hurdles through advanced hot runner design, optimized cooling architecture, and premium material selection.

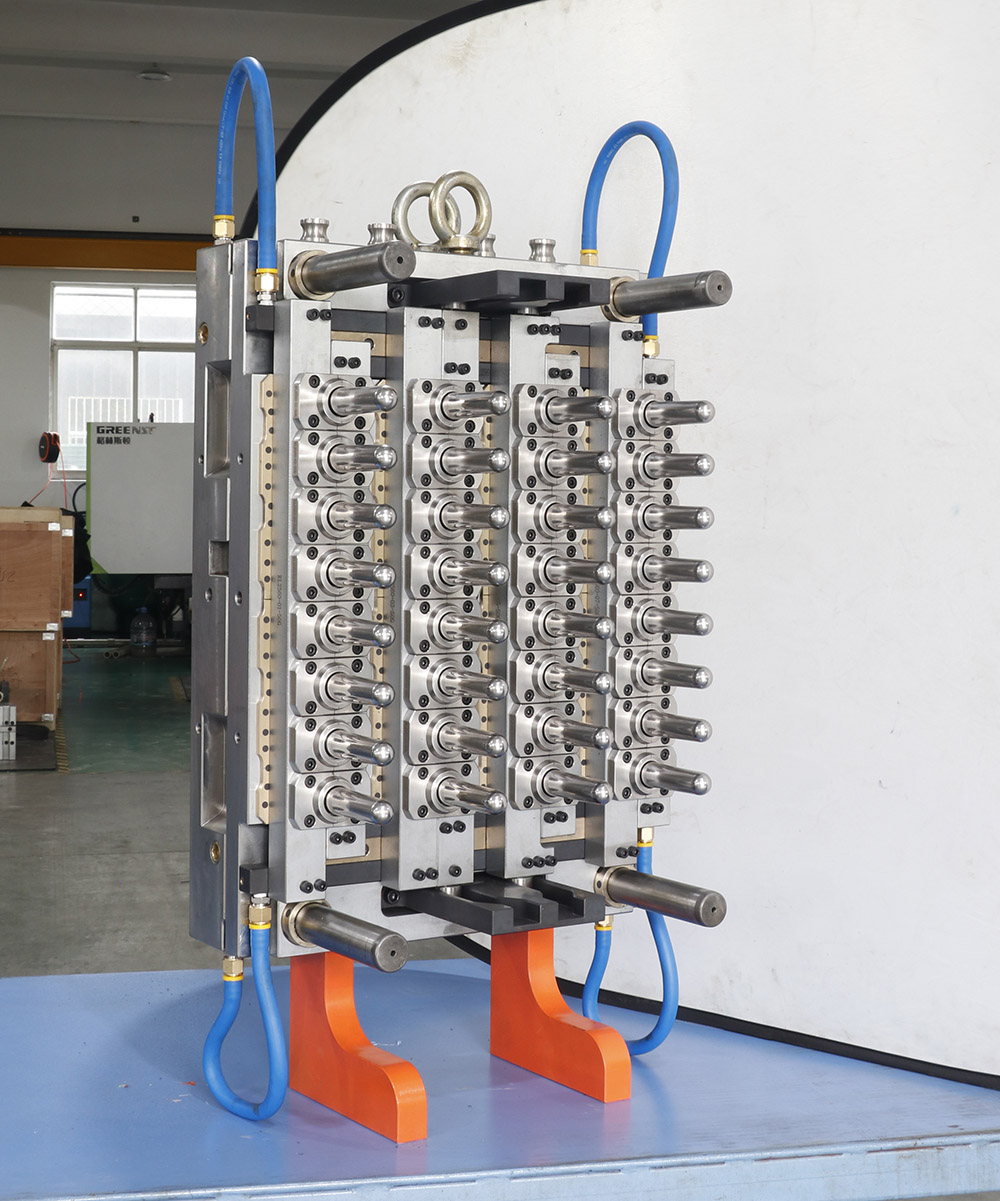

1. Precision Pneumatic Valve Gate Hot Runner System
For a high-cavitation mould (32 cavities) molding heavy preforms, ensuring simultaneous filling and preventing thermal degradation is paramount.
- Symmetrical H-Bridge Flow Balance: Taoyuan Mould engineered a geometrically balanced H-type runner layout. This ensures uniform melt distribution across all 32 cavities with a flow variation tolerance of less than ±0.5%.
- Pneumatic Valve Gating Control: Each nozzle is equipped with an independent pneumatic cylinder for ultra-precise pin action. This delivers a clean vestige (≤ 0.2mm), eliminating bottom weakness during the stretch blow molding process.
- Acetaldehyde (AA) & Thermal Degradation Control: Outfitted with multi-zone PID temperature controllers and premium German heating elements, our runner design maintains shear heat below critical thresholds, preserving resin clarity and keeping AA levels strictly within food-grade standards.
2. 360° Enhanced Multi-Stage Cooling Architecture
Thick-walled oil preforms are prone to sink marks, internal voids, and haze caused by slow crystallization. To achieve minimum cycle times without compromising optical clarity, Taoyuan Mould developed a triple-cooling strategy:
- Conformal Core Cooling Jackets: High-flow spiral cooling channels inside the core inserts deliver chilled water directly to the tip of the preform, ensuring rapid heat dissipation.
- Independent Neck Finish Cooling Rings: Dedicated low-temperature water loops isolate the large-diameter thread area. This prevents thermal deformation of the neck finish, ensuring leak-proof sealing with closure caps.
- Optimized Cycle Time: Integrated with our efficient take-out plate and post-cooling system, the overall molding cycle time for this 32-cavity oil preform mould was reduced by 15%–20% compared to conventional industry benchmarks.
3. Metallurgy & Micron-Level Manufacturing Precision
Mould longevity and interchangeable component accuracy are built into our manufacturing DNA:
| Mould Component | Material / Treatment Specification | Engineering Value & Advantage |
|---|---|---|
| Core, Cavity & Neck Inserts | Swedish ASSAB S136 Stainless Steel (Hardness: HRC 48–52) | Superior corrosion resistance, exceptional polishability (SPI A1 mirror finish), ensuring high preform transparency. |
| Mould Base Frame | P20 Pre-hardened Steel with Nickel Plating | High structural rigidity, rust protection, and long-term dimensional stability under continuous clamping tonnage. |
| Self-Locking Alignment System | Double-Taper & Taper-Pin Alignment Mechanism | Machining tolerances kept within ±0.005mm to eliminate core deflection, maintaining preform wall eccentricity ≤ 0.08mm. |
4. Quality Assurance & Factory Acceptance Testing (FAT)
To guarantee plug-and-play operation upon arrival at our customer's facility, every 32-cavity oil preform mould undergoes rigorous validation at our factory:
- Full CMM Dimension Audit: 100% inspection of critical insert dimensions and interchangeability.
- Continuous Factory Dry-Run & Molding Trial: Minimum 4 to 8 hours of continuous trial run on our in-house dedicated PET injection moulding machine.
- Preform Quality Testing: Comprehensive evaluation including wall thickness concentricity, drop testing, AA level verification, and cap sealing integration tests.
Why Partner with Taoyuan Mould?
Taoyuan Mould is more than a mould manufacturer — we are your end-to-end PET Packaging Solution Partner. From preform weight lightweighting and bottle neck design to complete turn-key injection molding line integration, our engineering team brings over a decade of specialized expertise. We help bottle blowers and edible oil bottlers minimize cost-per-thousand preforms through reliable, fast-cycling, and low-maintenance tooling.
Frequently Asked Questions (FAQ)
Q: What is the main difference between an edible oil PET preform mould and a water preform mould?
Edible oil preforms feature much larger neck finishes (38mm, 45mm, 48mm) and significantly thicker walls compared to water preforms. This requires specialized hot runner nozzle sizing for higher volumetric flow rates, enhanced neck cooling circuits to prevent thread deformation, and precise gate cutting to ensure zero leakage.
Q: What is the expected mold life of a Taoyuan PET preform mould?
With imported Swedish S136 stainless steel for all core/cavity inserts and proper preventative maintenance, Taoyuan Mould's PET preform moulds are built to achieve a production lifespan of over 3 million shots.
