Case Study: Upgrading a Water Bottling Line with 64-Cavity Energy-Saving Preform Moulds
Published by: Taoyuan Mould | Technical Engineering Division
Industry Focus: PET Bottle Packaging, High-Speed Injection Moulding, Bottled Water Production
1. Project Background & Operational Challenges
In high-speed beverage production, preform quality and thermal efficiency directly dictate the profitability of the entire bottling line. A regional bottled water manufacturer running high-volume 500ml PET water lines encountered several critical manufacturing bottlenecks with their existing setup:
- Capacity Bottlenecks: Their legacy 32-cavity mould was unable to keep pace with modern high-speed stretch blow molding (SBM) machinery downstream.
- High Energy Overhead: Inefficient heating channels and excessive cooling cycle delays caused disproportionate kilowatt-hour (kWh) consumption per preform unit.
- Acetaldehyde (AA) Levels & Weight Fluctuations: Inconsistent thermal profiling across inner core zones caused minor AA degradation and neck-finish variations, risking seal integrity on 28mm short-neck caps.
2. Technical Solution by Taoyuan Mould

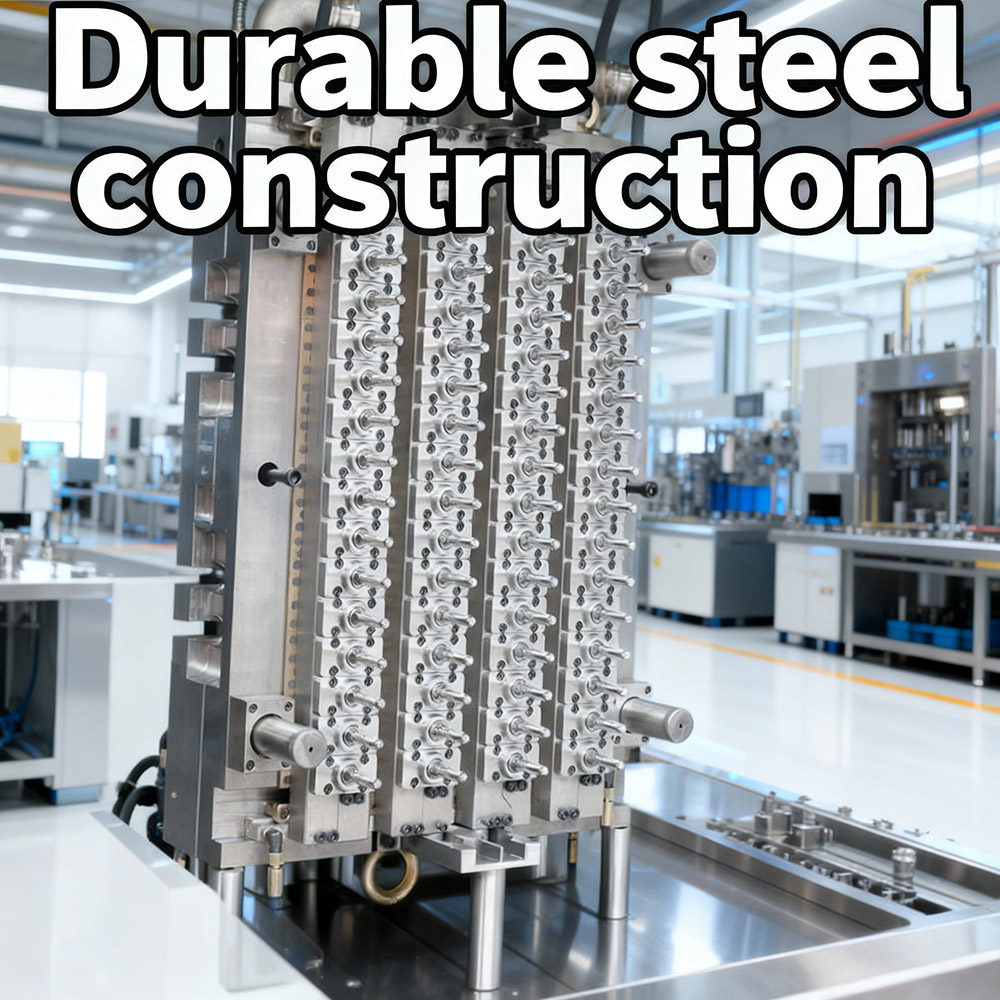

As a specialized PET preform mould manufacturer, Taoyuan Mould executed a comprehensive engineering audit of the client’s injection equipment, material viscosity parameters, and chiller infrastructure. The recommended turn-key solution was the integration of our state-of-the-art 64-Cavity Energy-Saving PET Preform Mould featuring custom thermal isolation architecture.
Key Engineering Innovations Implemented:
- Pneumatic Valve Gate Hot Runner System: Designed with individual balance control for each cavity to eliminate thermal degradation, minimize tail-drop length, and lower gate stress.
- Optimized Conformal Cooling Channels: Utilizing advanced 3D cooling circuit layouts within core and cavity inserts, achieving rapid, uniform thermal transfer and cutting cooling time by up to 22%.
- Enhanced Material Selection: Mould cores and cavities forged from imported S136 stainless steel (HRC 48-52), paired with titanium-coated neck rings for wear resistance and low friction coefficient.
- Thermal Energy Shielding: Integrated ceramic insulation plates at critical platen touchpoints to prevent heat loss from the hot runner manifold into the injection machine structure.
3. Performance Metrics: Before vs. After Upgrade
Following installation and fine-tuning by Taoyuan Mould’s field engineers, the client recorded dramatic operational gains within the first 30 days of continuous operation:
| Key Performance Indicator (KPI) | Legacy System (32-Cavity) | Taoyuan Mould Solution (64-Cavity) | Operational Impact |
|---|---|---|---|
| Injection Cycle Time | 14.2 seconds | 11.5 seconds | 19% Faster Cycle Speed |
| Daily Output (Preforms) | approx. 194,000 units | approx. 372,000 units | 92% Yield Increase |
| Specific Energy Consumption | 0.38 kWh / kg PET | 0.306 kWh / kg PET | 19.5% Energy Savings |
| Weight Variance (±) | ± 0.25 g | ± 0.08 g | Superior Material Consistency |
| Gate Tail Quality | < 0.5 mm (Standard) | < 0.2 mm (Self-Centering) | Eliminated Blowing Defects |
4. Technical Deep-Dive: Achieving Energy Efficiency & AA Control
Energy savings in PET injection molding rely heavily on balancing the melt temperature inside the hot runner manifold without overheating the polymer. Taoyuan Mould engineered special nozzle tips with high thermal conductivity copper-alloy alloys, enabling melt flow at lower operating temperatures without freezing the gate.
This thermal balance directly reduced the heater band duty cycle by 24%, while maintaining optimal Acetaldehyde (AA) suppression under 4 ppm—critical for preserving the clean taste profile demanded in pure water bottling applications.
5. Why Leading Bottlers Partner with Taoyuan Mould
As a global supplier of precision PET moulds, Taoyuan Mould combines advanced CAD/CAM/CAE simulation with rigorous CNC machining accuracy to deliver customized solutions for liquid packaging, edible oil, carbonated soft drinks (CSD), and cosmetic containers. Our engineering philosophy centers on maxing out uptime, optimizing cycle times, and providing sustainable manufacturing options through reduced carbon footprints.
Conclusion
By upgrading to Taoyuan Mould’s 64-cavity energy-saving preform mould, the client effectively doubled their water bottling preform capacity on the same floor space while slashing unit electricity costs. This case study demonstrates that investing in high-precision, low-energy PET preform tooling yields high ROI and long-term competitive advantages in modern packaging operations.
