Achieving Preform Wall Thickness Uniformity: Design Principles and Process Control
An Advanced Technical Engineering Guide by pet-molds (PET-MOLDS CO., LTD.)
Executive Summary
In high-speed stretch blow molding, the structural integrity, top-load strength, and optical clarity of a PET container depend entirely on the geometric precision of the injection-molded preform. The single most critical quality indicator is wall thickness uniformity. Even microscopic thickness variations can cause uneven material stretching, resulting in weak container walls and burst bottles. As a premier Chinese manufacturer of high-precision PET preform molds and integrated packaging tooling, pet-molds combines advanced mold design principles with rigorous process control. This technical analysis explores the engineering strategies required to achieve flawless wall thickness uniformity across high-cavity production systems.
1. The Engineering Challenge of Wall Thickness Eccentricity
During the injection molding phase, molten PET resin flows through intricate runner channels into high-pressure cavities surrounding a central steel core pin. When lateral polymer pressure fluctuates or the core pin undergoes thermal deflection, a phenomenon known as core shift occurs. This directly leads to wall thickness eccentricity (uneven distribution around the preform circumference). Inconsistent preform walls create localized thin spots during subsequent stretch blow molding, compromising gas barrier properties and reducing bottle top-load resistance.

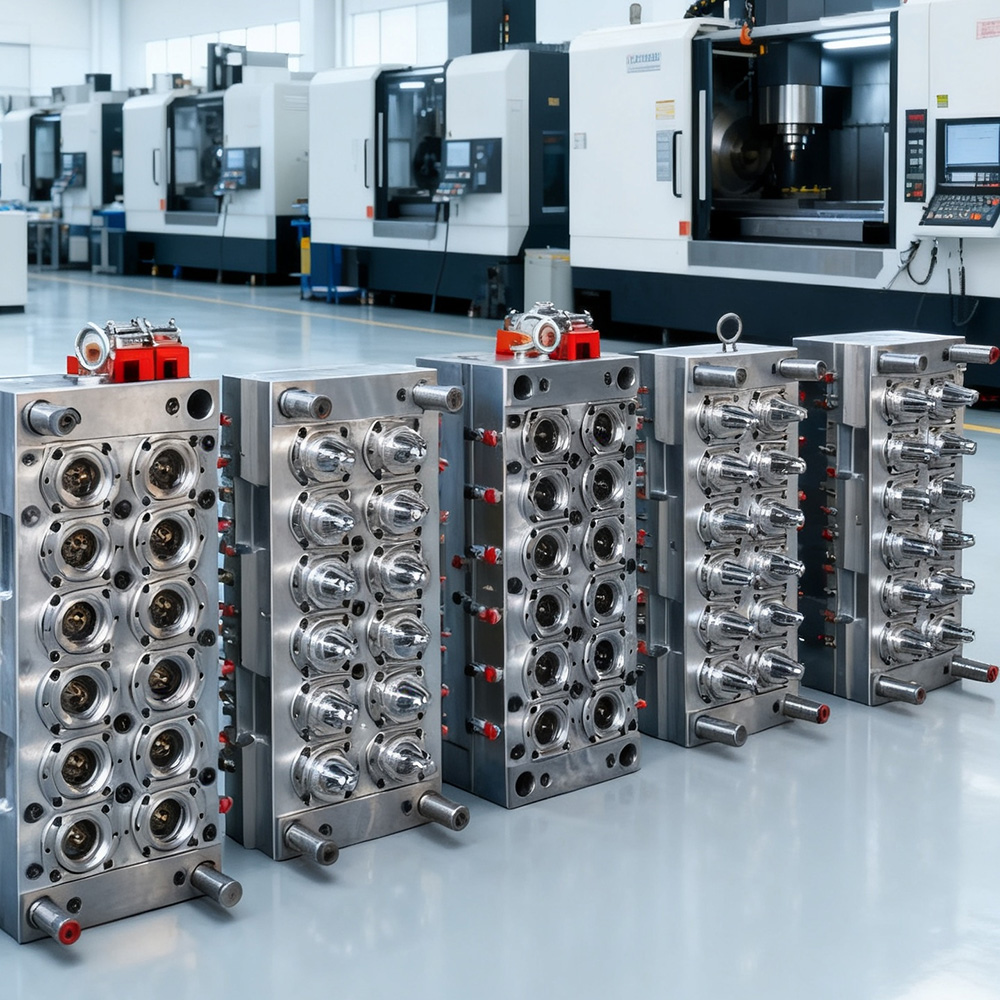

2. Mold Design Principles for Perfect Concentricity
Achieving structural uniformity begins at the tool engineering stage. At pet-molds, our high-cavity systems integrate three core design principles:
A. High-Rigidity Core Pins and Lock Tapers
To eliminate core deflection under massive injection pressures, we utilize premium vacuum-hardened S136 stainless steel (DIN 1.2083, heat-treated to HRC 48-52). Our molds feature precision-machined conical locking interlocks between the core and cavity inserts, maintaining core-to-cavity concentricity tolerances within strict limits (≤ 0.05 mm).
B. Thermally Balanced Hot Runner Manifolds
Melt viscosity fluctuations across multi-cavity layouts cause uneven filling speeds, which distort wall thickness. Our custom-engineered hot runner systems ensure uniform melt temperature and pressure distribution across 48, 72, or 96 cavities simultaneously.
C. Advanced Conformal Cooling Integration
Uneven thermal extraction leads to localized shrinkage and warpage. By embedding 3D conformal cooling channels that mirror the preform profile, we ensure uniform heat dissipation, stabilizing the polymer matrix instantly upon cavity filling.
3. Process Control Parameters on the Injection Molding Floor
Even the most advanced tool requires precise parameter control during operation. Maintaining wall uniformity relies on monitoring key variables:
| Process Parameter | Standard Control Threshold | pet-molds Optimized Specification |
|---|---|---|
| Wall Thickness Eccentricity | ≤ 0.12 mm | ≤ 0.03 mm (High-Precision Uniformity) |
| Injection Velocity Profile | Constant single-stage speed | Multi-stage programmable injection speed |
| Melt Temperature Variance | ± 3.0°C | ± 0.5°C via closed-loop PID control |
| Cooling Water Temperature | 10°C - 14°C fluctuating | 8°C stable chilled water circulation |
4. Synergy with Professional Closure Tooling Solutions
As professional closure mold solution experts, pet-molds understands that preform wall uniformity directly impacts neck finish dimensional stability. If preform threads experience uneven shrinkage due to thermal imbalances, the corresponding plastic caps will fail to seal properly on high-speed filling lines. Our holistic engineering approach guarantees that both preform wall profiles and cap thread dimensions maintain absolute geometric harmony.
Conclusion
Achieving preform wall thickness uniformity requires a synthesis of high-grade S136 stainless steel, rigorous mold design, and precise process control. By eliminating core shift and thermal imbalances, pet-molds delivers ultra-reliable tooling that ensures flawless bottle blowing performance and maximum plant efficiency.
Partner with pet-molds, your trusted Chinese preform mold manufacturer and professional closure mold solution expert, to elevate your packaging quality standards.
