16 Cavity PET Wide Mouth Preform Mold Professional Manufacturer: Taoyuan Mould — High Quality, Fastest Delivery, Best Prices

By Taoyuan Mould Technical Team  |  Updated: August 2026

Introduction: The Growing Demand for PET Wide Mouth Preform Molds

The global packaging industry has witnessed a remarkable shift toward PET (polyethylene terephthalate) containers across food, beverage, cosmetic, pharmaceutical, and industrial sectors. Among the most critical components in this ecosystem is the PET preform mold — the precision tool that shapes molten PET resin into preforms, which are subsequently blow-molded into final bottle shapes. As a professional PET wide mouth preform mold manufacturer, Taoyuan Mould has emerged as a trusted partner for brands and converters worldwide[reference:0][reference:1].

Wide-mouth preforms — typically used for jars, food containers, and industrial packaging — demand specialized mold designs that accommodate larger neck diameters (ranging from 12mm to 150mm) and heavier preform weights (from 6g to 720g)[reference:2]. The 16 cavity PET wide mouth preform mold represents a sweet spot in production economics: it offers sufficient output for medium-to-high volume manufacturing while maintaining manageable tooling costs and operational flexibility[reference:3].

With over 15 years of dedicated experience in the PET preform molding industry, Taoyuan Mould has developed proprietary technologies including independent self-locking cavity structures and needle valve hot runner systems that set its 16-cavity wide-mouth molds apart from conventional offerings

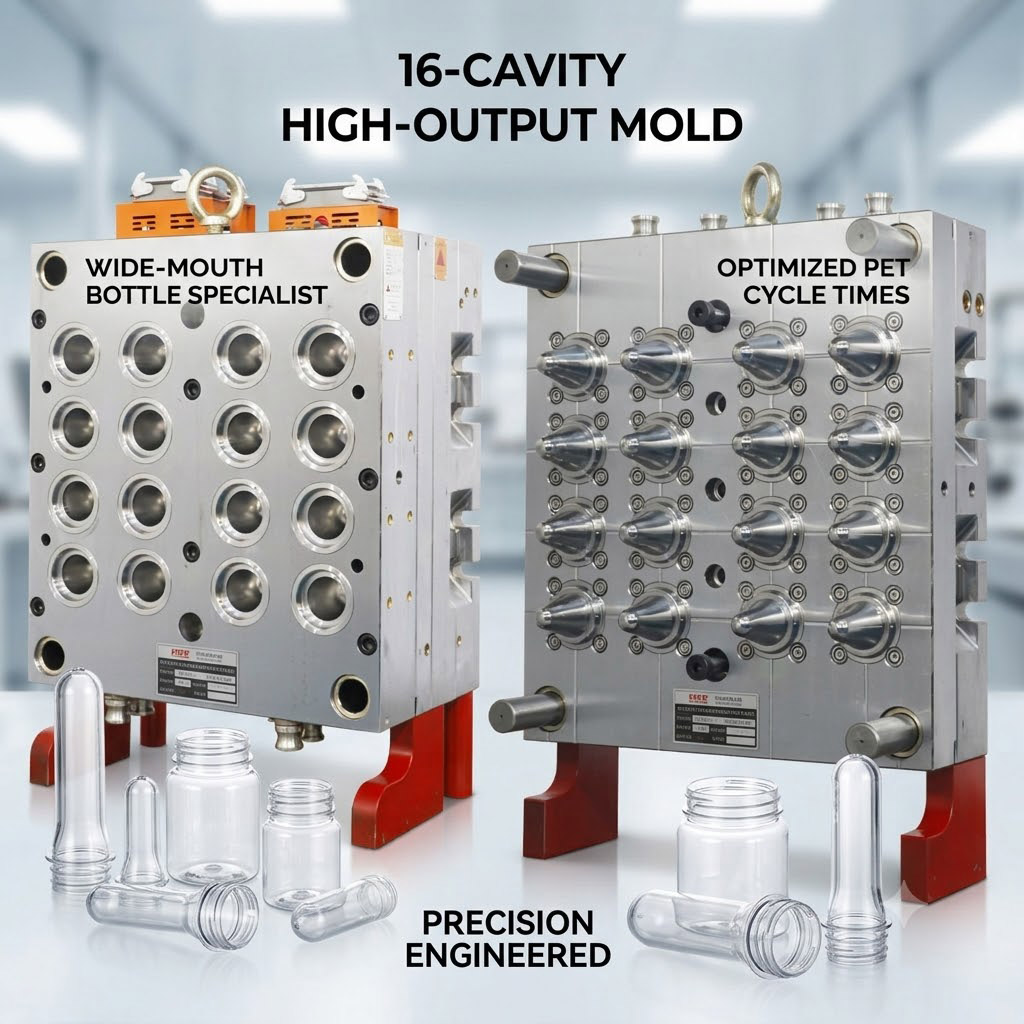

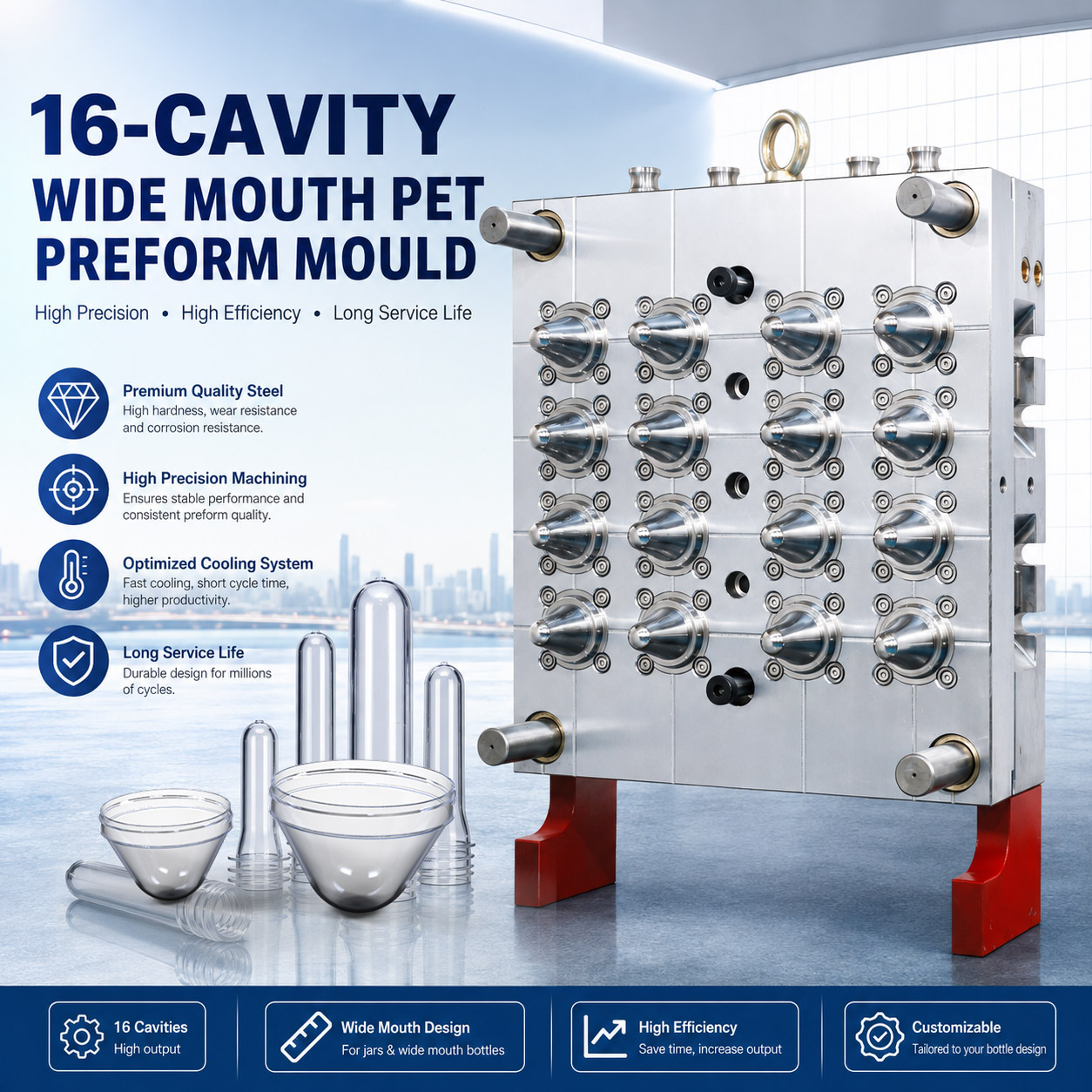

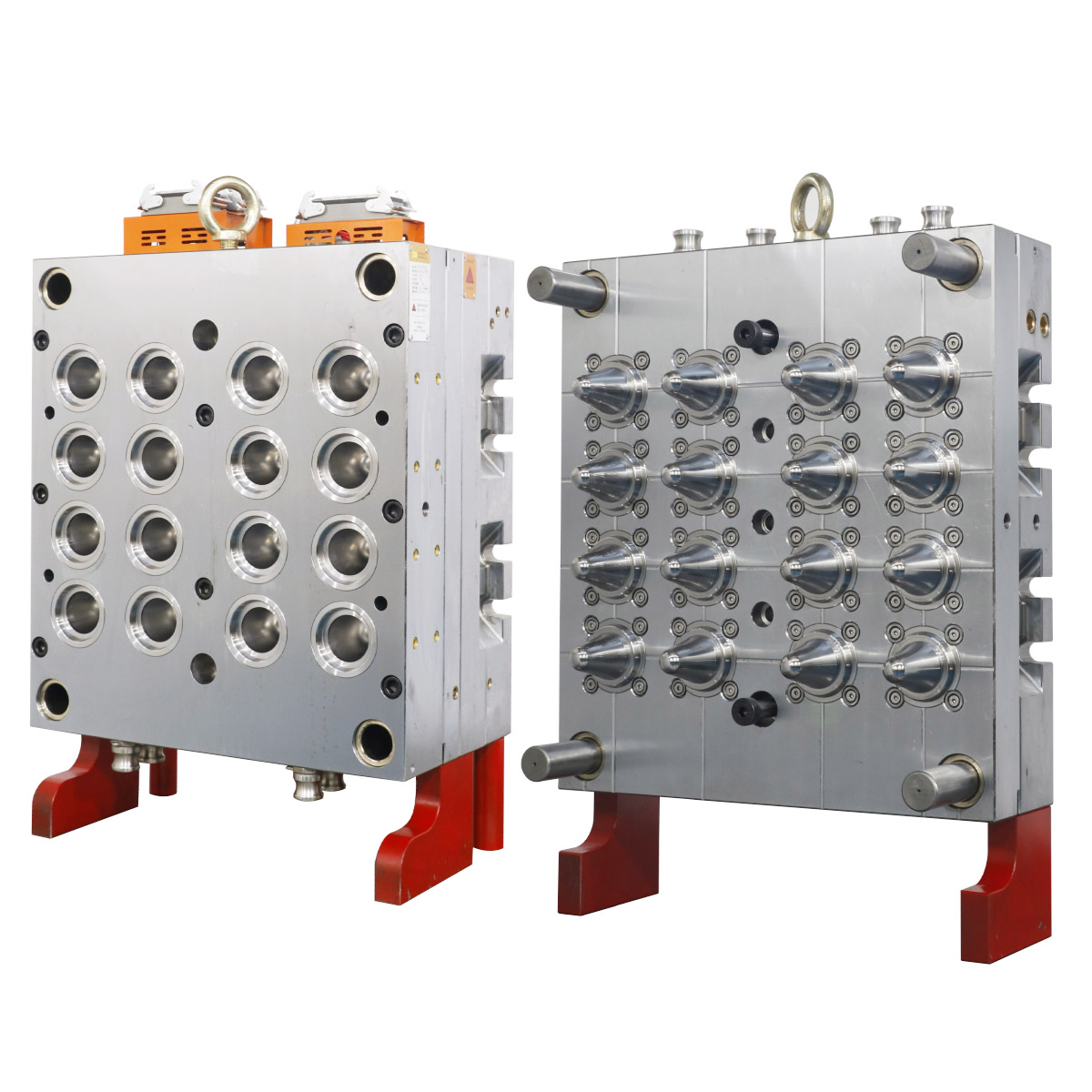

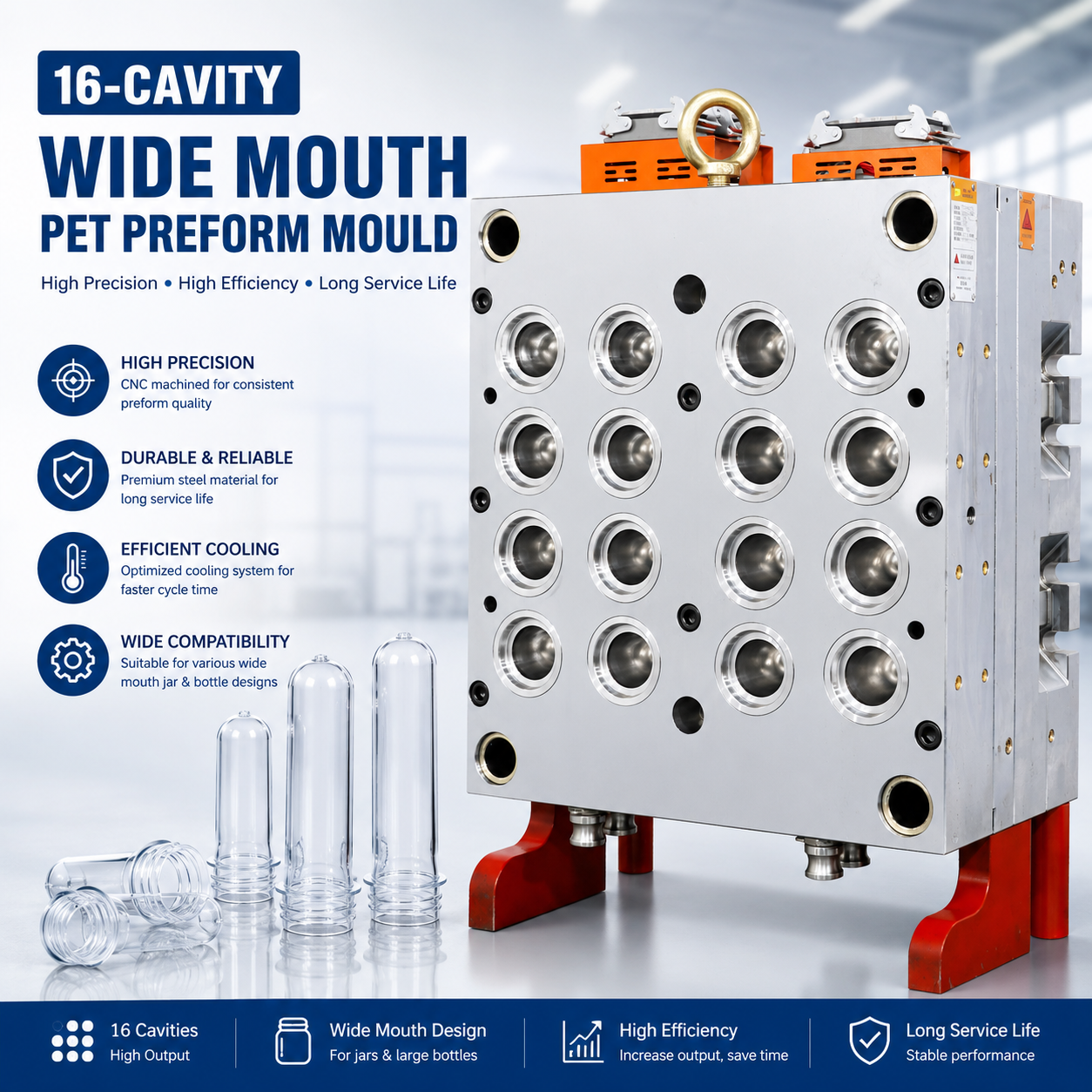

Technical Deep Dive: The 16 Cavity PET Wide Mouth Preform Mold

1. Cavity Configuration and Production Economics

The 16-cavity preform mold is engineered to injection-mold 16 preforms simultaneously in a single cycle[reference:6]. Compared to lower-cavity configurations (4, 8, or 12 cavities), a 16-cavity mold delivers proportionally higher output without disproportionately increasing machine clamping force requirements. This makes it an ideal choice for:

• Medium-volume production runs — typically 6,000–12,000 preforms per hour depending on cycle time and preform weight[reference:7]
• Flexible manufacturing operations — where quick changeovers between different preform designs are required
• Entry-to-mid tier packaging converters — seeking a balance between capital investment and production capacity[reference:8]

Taoyuan Mould has successfully designed and developed preform molds with up to 72 cavities in its complete in-house manufacturing facility, demonstrating the engineering depth that supports even the most demanding multi-cavity applications[reference:9].

2. Advanced Hot Runner System with Needle Valve Technology

At the heart of every high-performance PET preform mold lies its hot runner system. Taoyuan Mould's 16-cavity wide-mouth molds employ a balanced hot runner system with needle valve gate control[reference:10][reference:11]. This design delivers several critical advantages:

• Gate quality — The needle valve ensures clean, gate-free preform finishes without stringing or drooling, eliminating secondary trimming operations[reference:12]
• Material savings — Hot runner systems eliminate runner waste, reducing material costs and improving sustainability[reference:13]
• Process stability — Point-to-point temperature control across each cavity ensures consistent melt flow and uniform preform quality[reference:14]

The hot runner system is equipped with German heating elements, delivering reliable thermal performance and extended service life[reference:15]. This level of thermal precision is particularly important for wide-mouth preforms, where thicker wall sections demand careful temperature management to avoid shrinkage and dimensional variability.

3. Precision Materials and Heat Treatment

The longevity and performance of a PET bottle preform mold depend heavily on material selection. Taoyuan Mould manufactures its 16-cavity wide-mouth molds using industry-leading materials:

• Core and cavity inserts — Made from S136 stainless steel (Swedish ASSAB specification), offering excellent corrosion resistance, high polishability, and hardness up to HRC 48–52[reference:16][reference:17]
• Mold base — Constructed from chrome-plated P20 steel, with the chrome plating providing enhanced corrosion protection in demanding production environments[reference:18]
• Heat treatment — Performed in German vacuum furnaces, ensuring consistent hardness and metallurgical properties across all components[reference:19]

This material strategy ensures that Taoyuan Mould's 16-cavity PET wide mouth preform molds can withstand the extreme thermal cycling inherent to PET injection molding — where molten PET enters the cavity at 270–290°C while the cavity surface is chilled to 8–14°C to rapidly freeze the polymer[reference:20].

4. Independent Self-Locking Cavity Design

One of Taoyuan Mould's most distinctive technical innovations is its independent self-locking cavity structure for PET preform molds[reference:21][reference:22]. This proprietary design incorporates:

• Secondary double-taper positioning technology — Each cavity operates with its own locking mechanism, ensuring precise alignment and concentricity[reference:23]
• Individual cavity independence — If one cavity requires maintenance, the others can continue operating, minimizing production downtime
• Enhanced product concentricity — The self-locking design maintains concentricity within ≤0.08mm, critical for wide-mouth preforms where neck finish accuracy is paramount[reference:24]

This innovation directly addresses one of the most persistent challenges in multi-cavity preform molding: maintaining consistent part quality across all cavities over extended production runs[reference:25].

5. Cycle Time Optimization and Cooling Efficiency

Cycle time is the single most important variable affecting preform production economics. Taoyuan Mould's 16-cavity wide-mouth molds are optimized for:

• Standard PET screw injection molding machines — Achieving cycle times of approximately 45 seconds per shot[reference:26]
• Dual-injection systems with external cooling (PET Master line) — Cycle times can be reduced to as low as 24 seconds when using 3-station external cooling systems[reference:27]

The mold design incorporates efficient cooling channel layouts that maximize heat transfer from the preforms, reducing cooling time and improving overall throughput. This is particularly important for wide-mouth preforms, which typically have thicker walls and longer cooling requirements than standard beverage preforms.

6. Compatibility with Major Injection Molding Systems

Taoyuan Mould's 16-cavity PET wide mouth preform molds are designed for seamless integration with leading injection molding platforms, including Husky, Netstal PET line, PET Master, and other general PET injection molding machines[reference:28]. This broad compatibility ensures that converters can deploy Taoyuan Mould's tooling without expensive machine modifications or retrofitting.

Quality Assurance: From Design to Production

Taoyuan Mould's commitment to high quality PET preform molds is embedded in every stage of the manufacturing process:

CAD/CAE/CAM-Enabled Design

The company employs a comprehensive CAD/CAE/CAM system for mold design,造型, and programming[reference:29][reference:30]. Advanced software including SOLIDWORKS, UG, and PowerMILL enables:

• Computer-simulated preform stretch testing to ensure optimal blow molding performance[reference:31]
• Precise 2D and 3D modeling to meet complex product geometry requirements[reference:32]
• Mold flow analysis to optimize gate locations and runner balance

Precision Manufacturing Capabilities

Taoyuan Mould operates a complete internal manufacturing facility equipped with:

• Precision 3D printers — For rapid prototyping and complex geometry verification[reference:33][reference:34]
• CNC machining centers — Ensuring tight tolerances and repeatable accuracy[reference:35]
• Standard mold frame designs — Reducing lead times while maintaining quality consistency[reference:36]

Comprehensive Testing and Validation

Every PET bottle preform mold from Taoyuan Mould undergoes rigorous testing before shipment:

• Unit cavity testing — Each cavity is independently verified for weight consistency and dimensional accuracy[reference:37]
• Trial molding — Full production trials on customer-specified injection molding machines
• Dimensional inspection — Neck finish dimensions, preform weight tolerance (±0.3g typically), and wall thickness variation (≤0.05mm for length ≤100mm)[reference:38]

Application Industries for 16 Cavity Wide Mouth Preform Molds

Taoyuan Mould's wide mouth PET preform molds serve a diverse range of industries[reference:39][reference:40]:

• Food Packaging — Jars for sauces, spreads, honey, peanut butter, and pickled products
• Beverage Industry — Juice and dairy containers requiring wide-mouth access
• Edible Oil — Cooking oil containers with wide neck finishes for easy pouring
• Cosmetics and Personal Care — Cream jars, lotion bottles, and specialty containers
• Pharmaceutical — Wide-mouth bottles for tablets, capsules, and powdered supplements
• Industrial and Agricultural — Chemical containers, pesticide bottles, and specialty packaging

The preform weight range of 6g to 720g and neck diameter range of 12mm to 150mm[reference:41] ensures that Taoyuan Mould can accommodate virtually any wide-mouth packaging requirement.

Why Taoyuan Mould Stands Out: High Quality, Fastest Delivery, Best Prices

The title of this article — "16 Cavity PET Wide Mouth Preform Mold Professional Manufacturer Taoyuan Mould High Quality Injection Fastest Delivery Good Prices" — reflects the core value proposition that Taoyuan Mould delivers to its global客户 base:

High Quality

From S136 stainless steel components to German heating elements and precision CNC machining, every aspect of Taoyuan Mould's 16-cavity wide-mouth molds is engineered for high quality injection molding performance. The company's quality management system has earned a China taxpayer credit rating of A (2023), reflecting its operational excellence and reliability[reference:42].

Fastest Delivery

Located in Huangyan, Zhejiang — China's renowned "Mold Town" — Taoyuan Mould benefits from a complete local supply chain ecosystem[reference:43][reference:44]. Combined with its in-house manufacturing capabilities and standard mold frame designs, the company achieves industry-leading lead times without compromising quality[reference:45].

Good Prices

Taoyuan Mould's vertically integrated manufacturing model and strategic sourcing of materials enable competitive pricing[reference:46]. The company offers tiered solutions at different price points to accommodate varying customer requirements and budget constraints, ensuring good prices without sacrificing performance[reference:47].

One-Stop Service

Beyond mold manufacturing, Taoyuan Mould provides comprehensive one-stop services including[reference:48][reference:49]:

• Custom mold design based on customer bottle samples
• Technical support for installation and commissioning
• Trial molding and validation services
• After-sales support and maintenance guidance[reference:50]

Global Reach and Export Markets

Taoyuan Mould's PET preform mold solutions have been exported to the United States, Europe, South America, the Middle East, Southeast Asia, Africa, and many other countries and regions[reference:51][reference:52]. The company has participated in CHINAPLAS 7 times since 2016, demonstrating its ongoing commitment to the global plastics industry[reference:53][reference:54].

This international footprint is a testament to the quality, reliability, and value that Taoyuan Mould's 16-cavity PET wide mouth preform molds deliver to customers across diverse markets and applications.

Conclusion: Your Trusted PET Preform Mold Solutions Expert

As the packaging industry continues to evolve toward sustainable, lightweight, and high-performance solutions, the role of precision PET preform molds becomes increasingly critical. Taoyuan Mould's 16 cavity PET wide mouth preform mold represents a mature, reliable, and cost-effective solution for converters seeking to enter or expand in the wide-mouth packaging market.

With over 15 years of specialized experience, proprietary self-locking cavity technology, advanced CAD/CAE/CAM design capabilities, and a commitment to high quality, fastest delivery, and good prices, Taoyuan Mould has established itself as a professional PET bottle preform mold manufacturer and a trusted PET preform mold solutions expert for customers worldwide[reference:55][reference:56].

Contact Taoyuan Mould today to discuss your 16-cavity wide-mouth preform mold requirements and experience the difference that expertise, quality, and customer focus can make.
