4-Cavity Flip-Top Cap Mold – High-Efficiency Bottle Cap Mold by Taoyuan Mould

petmould Image

4-Cavity Flip-Top Cap Mold – High-Efficiency Bottle Cap Mold by Taoyuan Mould

High-quality 4-cavity flip-top cap mold from Taoyuan Mould. Ideal for hinge caps, snap-top closures, and plastic bottle caps. Reliable injection mold for high-volume production.

Product Description (for website)

Taoyuan Mould – Professional Bottle Cap Mold Manufacturer

We specialize in precision bottle cap molds. Our 4-cavity flip-top cap mold is designed for manufacturers who need balanced production output, stable hinge performance, and long mold life.

Key Features:

  • 4 cavities – Optimized for medium-to-high volume production

  • Flip-top / snap-top hinge design – Smooth opening and closing cycles

  • Hot runner or cold runner system – Available upon request

  • High wear resistance – Hardened steel components for extended mold life

  • Stable cycle time – Efficient cooling layout for consistent quality

Applications:

  • Flip-top caps for shampoo bottles

  • Snap-top lids for lotion and cosmetic containers

  • Hinge caps for ketchup, sauces, and personal care products

Why Choose Taoyuan Mould?

  • Specialized bottle cap mold manufacturer

  • Precision CNC and EDM machining

  • Mold trial and sample approval support

  • Fast delivery and after-sales service


  • Descriprion
High-quality 4-cavity flip-top cap mold from Taoyuan Mould. Ideal for hinge caps, snap-top closures, and plastic bottle caps. Reliable injection mold for high-volume production.

🔧 Cap Mould Engineering
Deep-Dive Details

Taoyuan Mould — Precision Tooling for High-Performance Caps & Closures
Trusted by Global Brands · 500+ Moulds Delivered

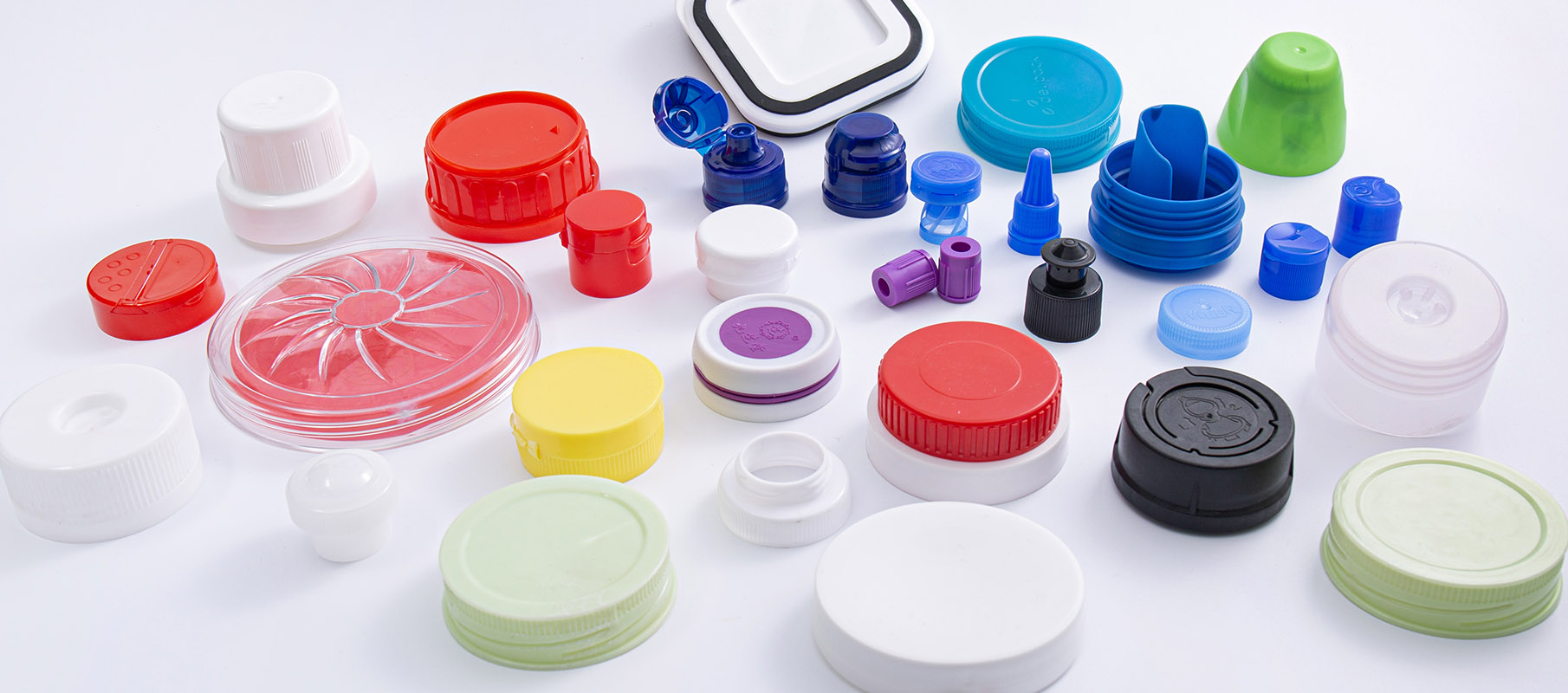

Caps

Why Taoyuan Mould? – Our Core Strengths

Taoyuan Mould has been a dedicated cap & closure mould manufacturer for over 18 years. We combine advanced German-style engineering, high-speed 5-axis machining, and a relentless focus on precision & durability. Our moulds are built for extreme productivity: multi-cavity hot runner systems up to 64 cavities, cycle time reduction up to 22%, and tool life exceeding 5 million shots.

We deliver turnkey solutions — from moldflow analysis and 3D design to sampling, mass production support, and spare parts service. Our workshop is ISO 9001:2025 certified, with in-house CMM and full inspection protocols.

300+ moulds/year
5-Axis CNC · EDM · Wire EDM
Lifetime ≥5M cycles
Lead time from 25 days
Exporting to 20+ countries
40+ senior engineers

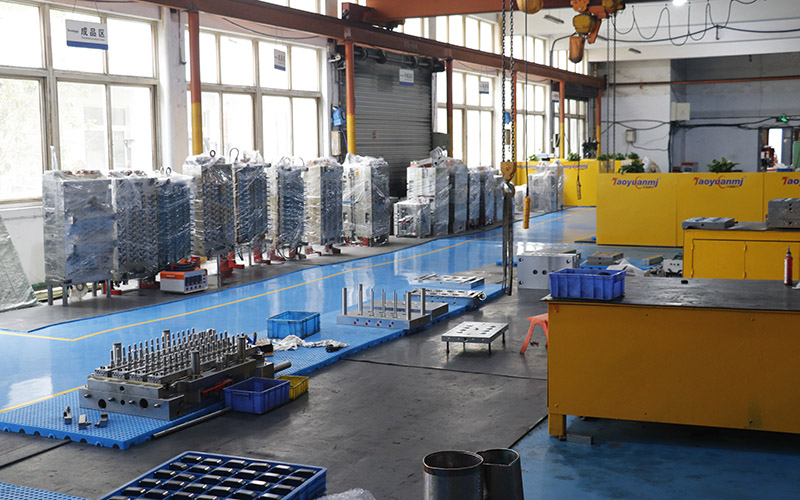

Taoyuan Mould Advanced Factory

Cap Mould Manufacturing Excellence

Engineered for high-speed production

Our cap moulds integrate hot runner balance technology, conformal cooling, and high-cavity architecture. We specialize in beverage caps, pharmaceutical closures, oil caps, flip-top lids, and tamper-evident designs. Each mould is simulated with Moldflow to eliminate warpage and optimize filling patterns.

Hot Runner Systems Conformal Cooling Mirror Polishing 2K / Overmolding Options

Technical Specifications (Standard Series)

Cavities: 8 to 64
Mould Steel: S136 / 2316 / Stavax
Hardness: HRC 48-52
Gate type: Pinpoint / Valve gate
Materials: PP, PE, PET, HDPE, PS
Cooling: High-efficiency baffles & spiral

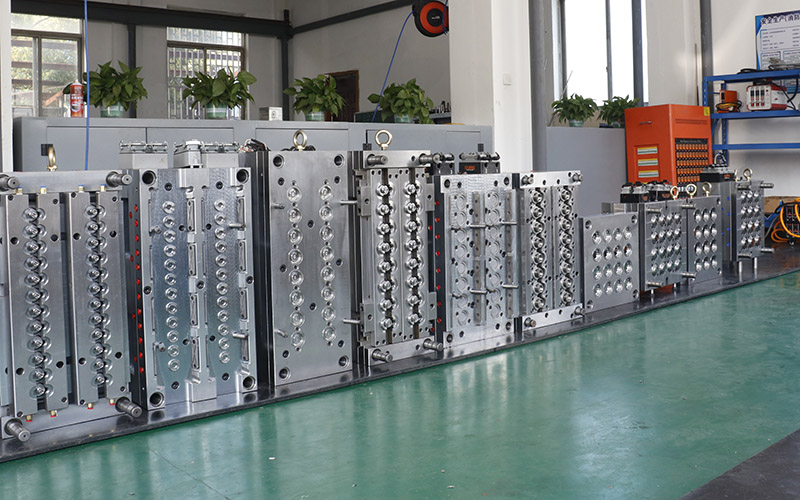

High precision cap mould

Integrated Quality Assurance Workflow

Mold Design

Moldflow + 3D CAD/CAM

Precision Machining

5-axis / EDM / Wire EDM

Full Inspection

CMM + Optical comparator

Trial & Sampling

On-site injection testing

Every mould is delivered with a detailed inspection report, sample parts, and maintenance manual.

Specialized Cap Mould Series

Custom engineered for each closure type: compression, injection, and multi-material designs

Water / Beverage Cap24-48 cavities
Carbonated Drink CapTamper-evident
Oil & Chemical CapHigh sealing
Pharmaceutical ClosureCleanroom class
Flip-top / Hinge CapDurability tested

Global Technical Support

Taoyuan Mould provides lifetime technical assistance, mould repair, and spare parts supply. Our team is ready for on-site commissioning or remote troubleshooting. We also offer free training for mould maintenance and optimization.

Fast spare parts delivery
Operator training

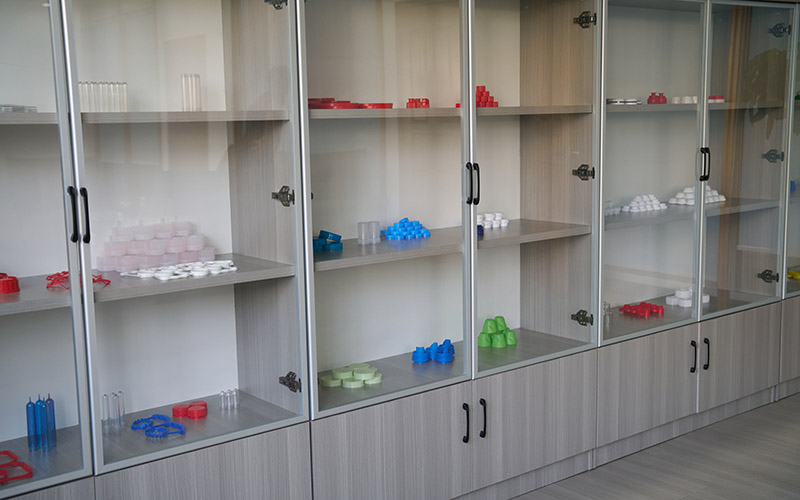

After-sales service

Request Your Custom Cap Mould Quote

Tell us your cap specifications, cavity number, and material — we’ll provide a professional DFM report within 48 hours.

Contact Engineering Team

Email: mavis@taoyuanmould.com | WhatsApp: +86-15657610896
