12-Cavity Tea Powder Cap Lower Cover Mold – High-Cavitation Inner Plug Mold

petmould Image

12-Cavity Tea Powder Cap Lower Cover Mold – High-Cavitation Inner Plug Mold

Precision 12-cavity tea powder cap lower cover mold by Taoyuan Mould. Designed for inner sealing lids, sifter bases, and plug covers for tea powder, protein powder, and nutritional supplement containers.

Product Description (for website)

Taoyuan Mould – Professional Bottle Cap Mold Manufacturer

We present our 12-cavity tea powder cap lower cover mold, engineered for producing the inner base / sealing plug of two-piece powder caps. This high-cavitation mold is optimized for thin-walled, tight-tolerance components used on tea powder cans, protein tubs, and supplement jars.

The lower cover typically features a sifting hole pattern, sealing ring, and snap-fit structure that mates with the upper flip-top lid.


  • Descriprion

Key Features

FeatureSpecification
Cavity count12 cavities
Mold typeHot runner / Cold runner (optional)
Part nameTea powder cap lower cover (inner plug)
Compatible materialsPP, HDPE, food-grade plastic
Typical diameter range30mm – 55mm
Sifting hole patternCustomizable (round slots, mesh, or D-shaped holes)
Sealing structureInternal lip seal or gasket-free seal
Steel typeHardened tool steel (e.g., 1.2344 / H13 / S136)
Cooling systemConformal / baffled cooling for uniform shrinkage
Estimated cycle time12 – 18 seconds (depending on part weight)
Injection machine requirement180 – 300 ton clamping force

Technical Advantages

  • 12-cavity balanced runner design – Ensures consistent filling of all 12 lower covers simultaneously

  • Precision sifting hole cores – Made from wear-resistant steel to prevent hole clogging or burrs

  • Snap-fit accuracy – Tight tolerance control (±0.02mm) for reliable mating with upper lid

  • Anti-warpage cooling layout – Critical for flat sealing surfaces and roundness of screw ring

  • Automatic degating – Available with hot runner valve gate for clean part separation

Applications

  • Tea powder container inner sealing lids

  • Protein powder jar lower covers

  • Nutritional supplement cap base plugs

  • Coffee powder canister sifter bases

  • Spice jar inner lids with sifting holes

Why Choose Taoyuan Mould?

  • Specialized in multi-cavity cap molds (4, 6, 8, 12, 16, 24, 32 cavities)

  • Food-grade mold finishing standards

  • Sample molding with inspection report (CMM data)

  • Fast lead time: 35–50 days

  • After-sales spare parts support


🔧 Cap Mould Engineering
Deep-Dive Details

Taoyuan Mould — Precision Tooling for High-Performance Caps & Closures
Trusted by Global Brands · 500+ Moulds Delivered

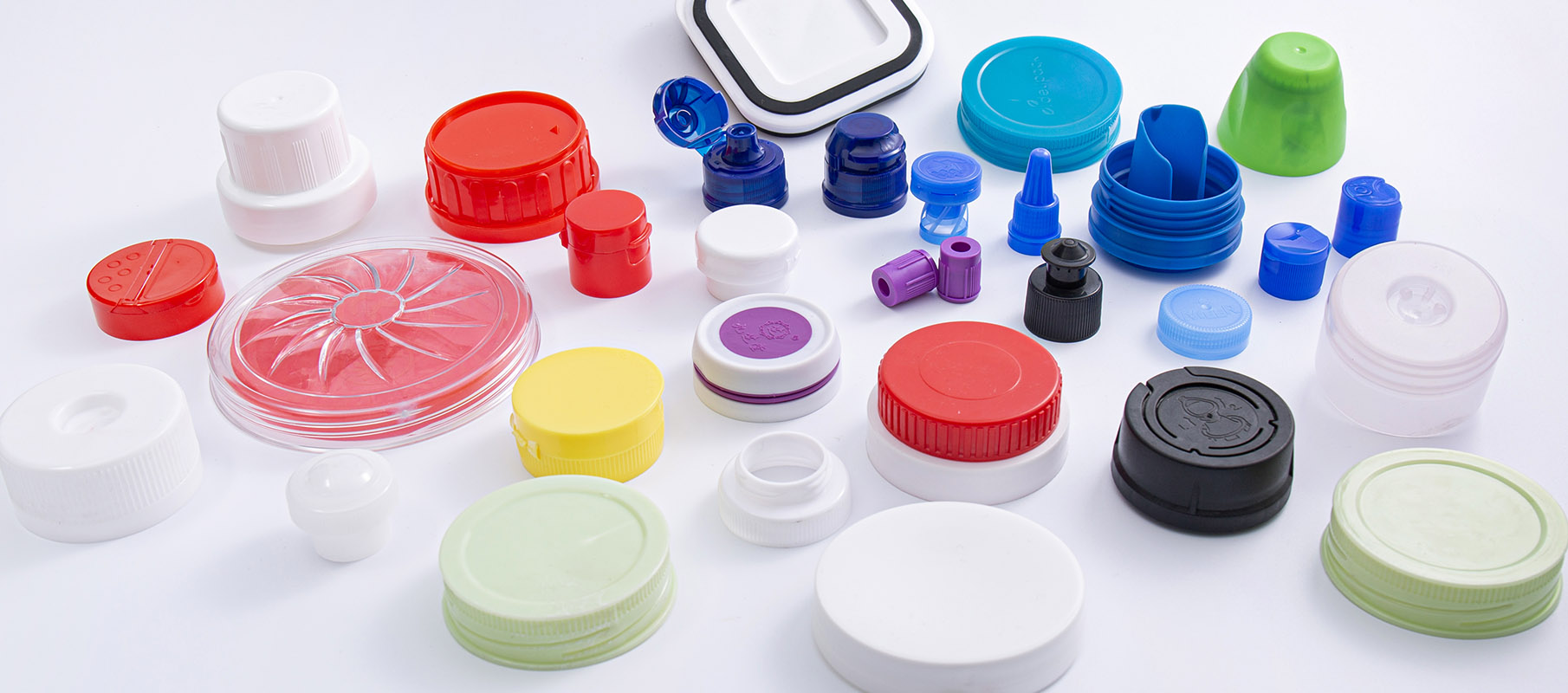

Caps

Why Taoyuan Mould? – Our Core Strengths

Taoyuan Mould has been a dedicated cap & closure mould manufacturer for over 18 years. We combine advanced German-style engineering, high-speed 5-axis machining, and a relentless focus on precision & durability. Our moulds are built for extreme productivity: multi-cavity hot runner systems up to 64 cavities, cycle time reduction up to 22%, and tool life exceeding 5 million shots.

We deliver turnkey solutions — from moldflow analysis and 3D design to sampling, mass production support, and spare parts service. Our workshop is ISO 9001:2025 certified, with in-house CMM and full inspection protocols.

300+ moulds/year
5-Axis CNC · EDM · Wire EDM
Lifetime ≥5M cycles
Lead time from 25 days
Exporting to 20+ countries
40+ senior engineers

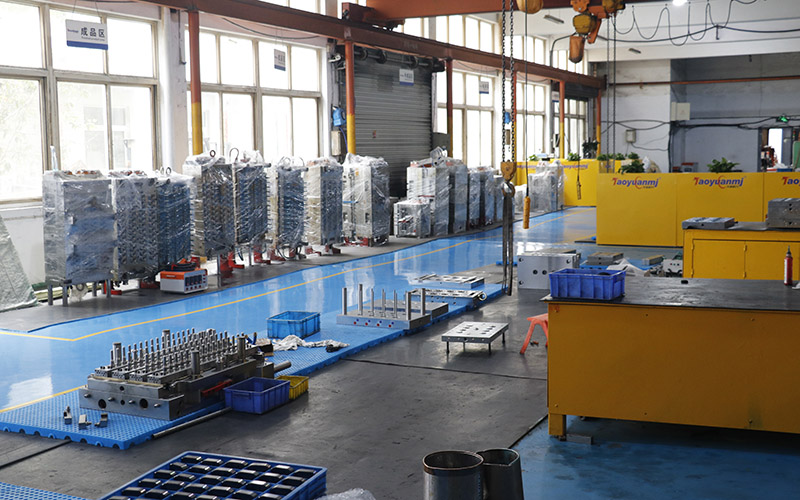

Taoyuan Mould Advanced Factory

Cap Mould Manufacturing Excellence

Engineered for high-speed production

Our cap moulds integrate hot runner balance technology, conformal cooling, and high-cavity architecture. We specialize in beverage caps, pharmaceutical closures, oil caps, flip-top lids, and tamper-evident designs. Each mould is simulated with Moldflow to eliminate warpage and optimize filling patterns.

Hot Runner Systems Conformal Cooling Mirror Polishing 2K / Overmolding Options

Technical Specifications (Standard Series)

Cavities: 8 to 64
Mould Steel: S136 / 2316 / Stavax
Hardness: HRC 48-52
Gate type: Pinpoint / Valve gate
Materials: PP, PE, PET, HDPE, PS
Cooling: High-efficiency baffles & spiral

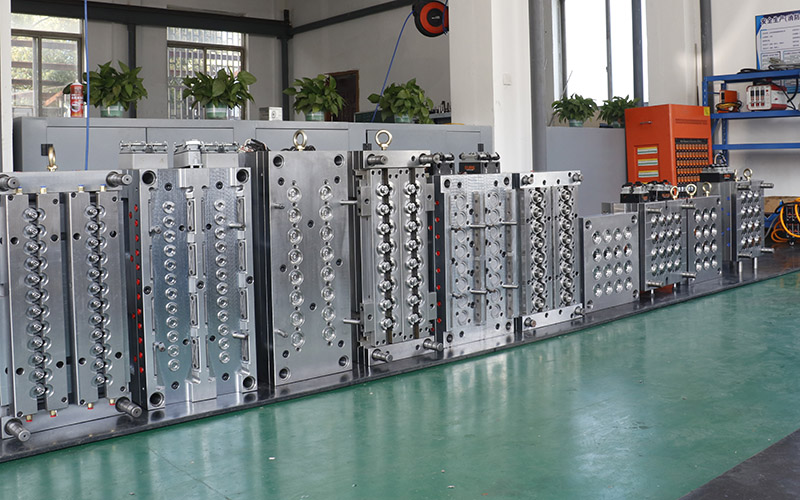

High precision cap mould

Integrated Quality Assurance Workflow

Mold Design

Moldflow + 3D CAD/CAM

Precision Machining

5-axis / EDM / Wire EDM

Full Inspection

CMM + Optical comparator

Trial & Sampling

On-site injection testing

Every mould is delivered with a detailed inspection report, sample parts, and maintenance manual.

Specialized Cap Mould Series

Custom engineered for each closure type: compression, injection, and multi-material designs

Water / Beverage Cap24-48 cavities
Carbonated Drink CapTamper-evident
Oil & Chemical CapHigh sealing
Pharmaceutical ClosureCleanroom class
Flip-top / Hinge CapDurability tested

Global Technical Support

Taoyuan Mould provides lifetime technical assistance, mould repair, and spare parts supply. Our team is ready for on-site commissioning or remote troubleshooting. We also offer free training for mould maintenance and optimization.

Fast spare parts delivery
Operator training

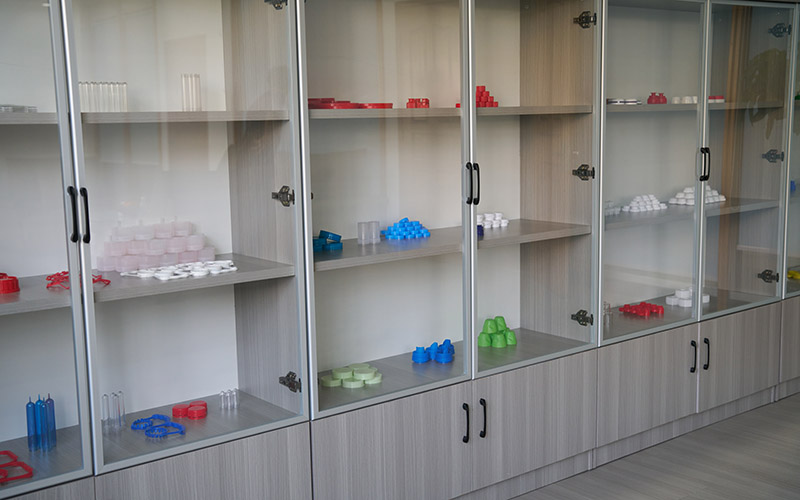

After-sales service

Request Your Custom Cap Mould Quote

Tell us your cap specifications, cavity number, and material — we’ll provide a professional DFM report within 48 hours.

Contact Engineering Team

Email: mavis@taoyuanmould.com | WhatsApp: +86-15657610896

© 2026 Taoyuan Mould — Precision Cap Mould Manufacturer. All designs tailored for high-volume production.

ISO 9001:2025 Certified | Engineered for global packaging industry
