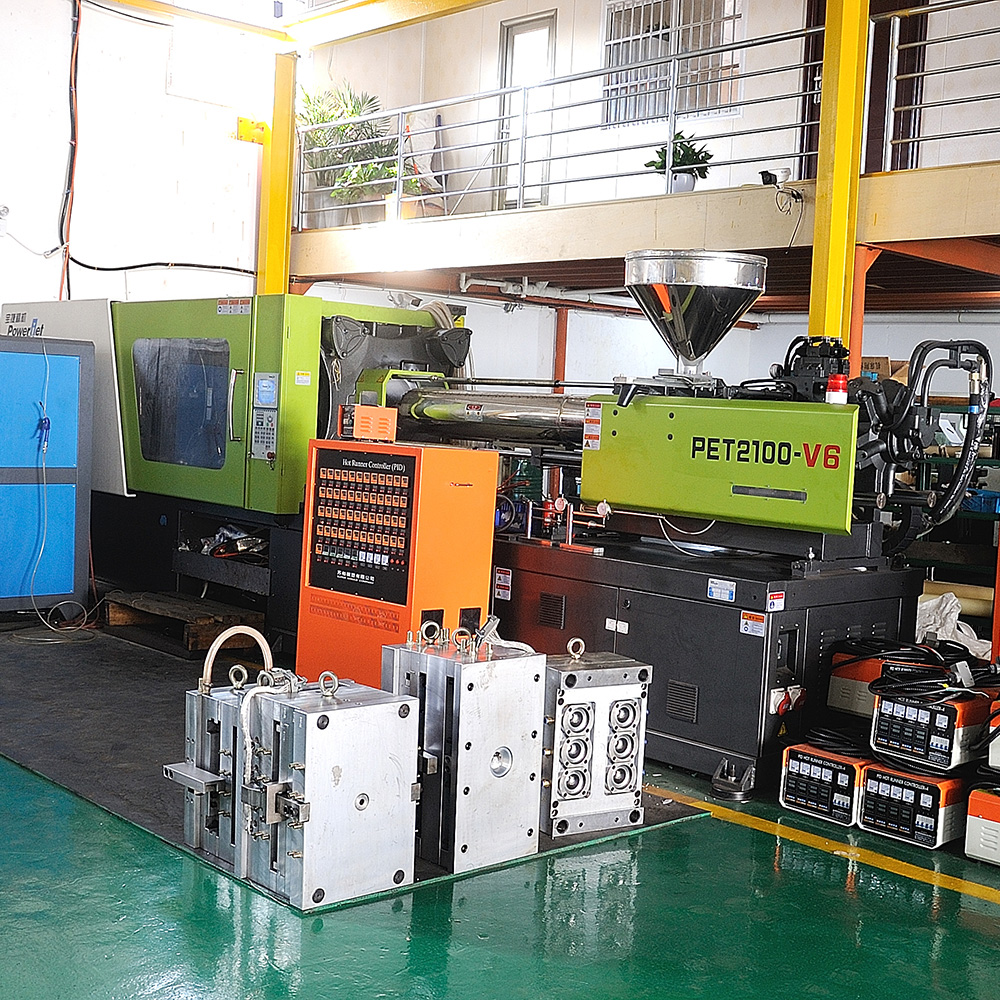

How to Perfectly Match Your Preform Mold with Your Injection Molding Machine
An Advanced Machine-Tooling Integration Guide by pet-molds (PET-MOLDS CO., LTD.)
Executive Summary
In high-cavity PET preform manufacturing, acquiring a world-class mold is only half the engineering equation. Even the most advanced, high-precision PET preform mold will underperform, experience excessive wear, or fail to operate if it is improperly matched with the injection molding machine (IMM). Parameters such as clamping tonnage, tie-bar spacing, daylight opening, and injection stroke volume must be engineered in absolute harmony. As a premier Chinese manufacturer of high-precision preform tooling and an industry-recognized professional closure mold solution expert, pet-molds presents this technical analysis to guide plant managers and engineers in achieving seamless machine-tool integration.
1. Critical Parameters for Machine-Mold Compatibility
Successfully integrating a multi-cavity preform mold (such as a 48, 72, or 96-cavity system) requires evaluating four fundamental machine specifications:
- Clamping Tonnage: Insufficient clamp tonnage causes parting-line flash under high injection pressures, while excessive tonnage places undue stress on the mold base and tie-bars.
- Tie-Bar Spacing and Mold Footprint: The physical dimensions of the mold base must fit comfortably between the machine tie-bars without interfering with robotic take-out mechanisms.
- Shot Capacity and Plasticizing Rate: The IMM barrel must deliver the exact shot weight plus cushion without exceeding optimal polymer residence time, preventing Acetaldehyde (AA) generation.
- Daylight and Ejection Stroke: Adequate opening daylight and stroke length are required to clear deep preform cores and ensure smooth robotic extraction.
2. Technical Matching Matrix
The correlation between mold cavitation and required machine specifications is outlined below:
| Mold Cavitation | Recommended IMM Clamping Tonnage | Critical Integration Consideration |
|---|---|---|
| 24 Cavities | 250 - 350 Tons | Standard tie-bar clearance; general-purpose hydraulic control. |
| 48 Cavities | 450 - 550 Tons | Enhanced platen parallelism; precise robot interface timing. |
| 72 to 96+ Cavities | 650 - 900+ Tons | High rigidity, multi-zone hydraulic clamping, and centralized quick-connect utilities. |
3. Engineering Considerations by pet-molds
When engineering high-cavity molds, pet-molds collaborates directly with machine integrators to ensure flawless alignment:
A. Vacuum-Hardened S136 Stainless Steel Durability
Our molds utilize premium S136 stainless steel (DIN 1.2083, heat-treated to HRC 48-52) to withstand millions of high-tonnage closing cycles without deformation or parting-line degradation.
B. Hydraulic and Pneumatic Interface Synchronization
We integrate standardized hydraulic core pullers and pneumatic valve-gate control boxes that interface smoothly with leading global injection molding machine controllers.
4. The Synergy with Professional Closure Tooling
As professional closure mold solution experts, pet-molds recognizes that production stability depends on the entire ecosystem. Matching your preform mold to the right machine ensures consistent wall thickness and neck thread precision, guaranteeing that your caps seal perfectly during automated capping.
Conclusion
Achieving peak operational efficiency requires precise synchronization between your preform mold and your injection molding press. Partner with pet-molds, your trusted Chinese preform mold manufacturer and professional closure mold solution expert, to engineer a fully optimized, high-performance production line.
